Z-Core™ Sets

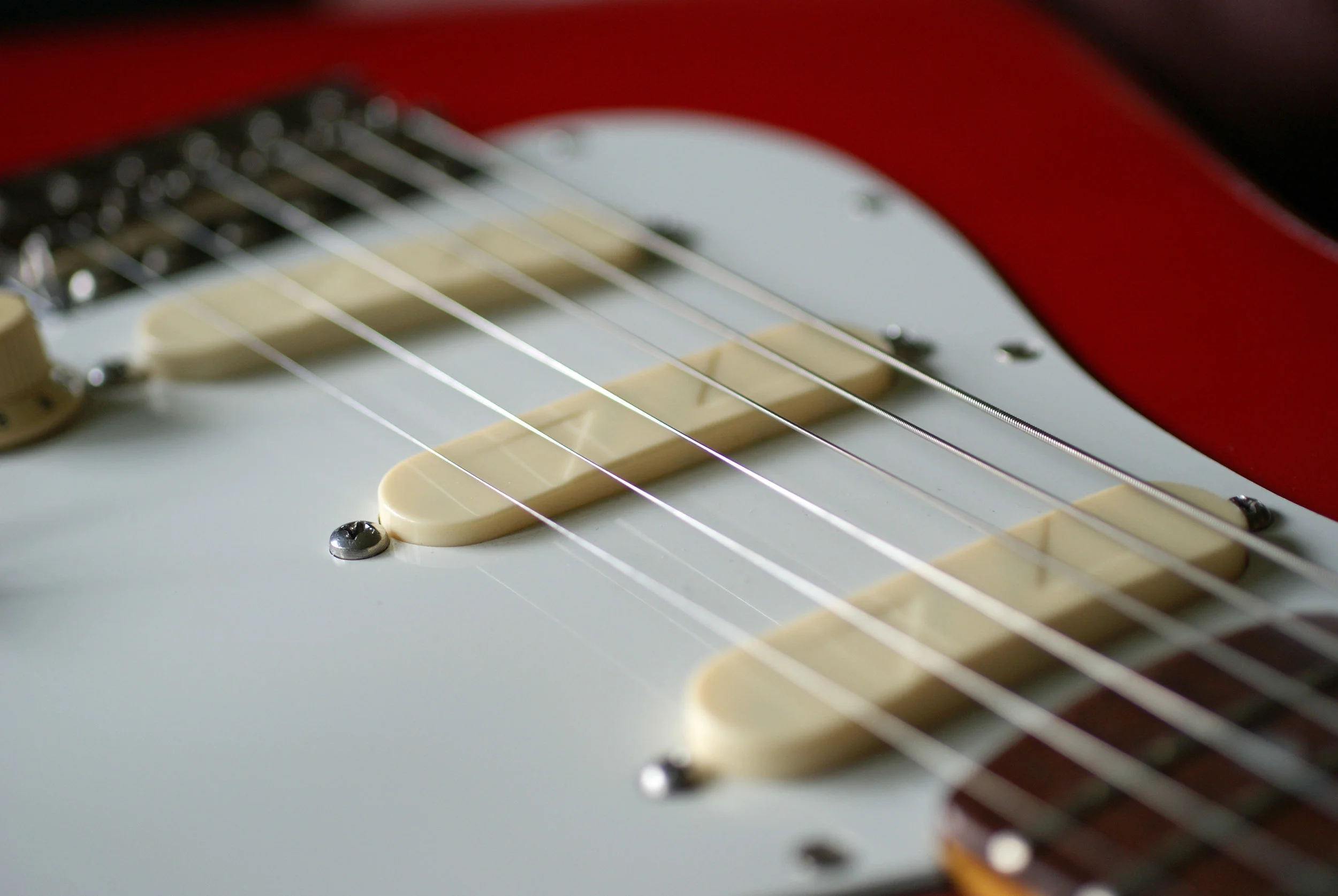

Zexcoil® Z-Core™ Pickups are the most economical pickups we can make, while retaining all of the quality and features of our Z-Series™ design! The only difference is they are built in our U.S. partner factory, the same factory where our unique coils have always been wound. We’ve put together some suggested sets, but with all of our model options there are myriad possibilities. If you don’t see the exact configuration you want, we can put together a set just for you in the Custom Shop.

Assembled sets are wired to the controls (3 potentiometers, a 5 way switch and capacitor - no switch tips or knobs) and mounted on a cardboard template.



Z-Core 5™ Sets

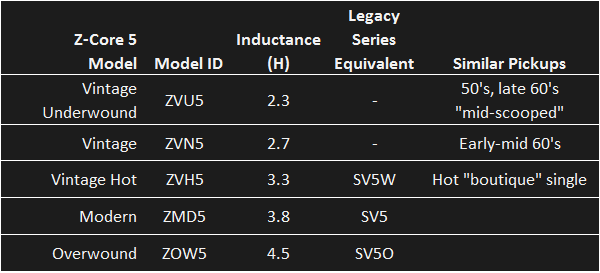

Our Z-Core 5 family of pickups utilize Tone Tuning Technology™ to mimic the frequency response of AlNiCo 5, the magnet alloy that is most closely associated with the classic Strat® tone. The 5 voicing is the most open and transparent, giving that signature, glassy Strat quack in the in between positions, a nice, open, “woody” response in the neck and that classic Strat snap in the bridge.

* Left-handed "Z-Core" pickups are only available from the Custom Shop. If you want this feature for a set below here is an option.

Please note, Pickups may take 10-15 days before ready for shipment. Lefties are considered special orders and may take up to 3 weeks before ready for shipment.



Z-Core 5 Vintage Set™
from 225.00
Controls Kit:
Quantity:
Add To Cart

Z-Core 5 Vintage Set™

  • Bridge: Z-Core Vintage 5 (ZVN5)
  • Middle: Z-Core Vintage Underwound 5 (ZVU5)
  • Neck: Z-Core Vintage Underwound 5 (ZVU5)

The Z-Core 5 Vintage Set is the lowest output Strat set we make, targeted at that classic "mid-scooped" low wind 50’s/late 60’s response in the neck and middle. The slight hotter bridge, like an early/mid 60’s output, provides a more balanced response than you would find in a true vintage set of pickups. It is compatible with conventional 250 kΩ controls. Use kit 6 with this set (or 10 if you want to add a blend pot) for a vintage control response. Use kit 9 (or 11) for a 275 kΩ load if you want to open up the high end just a wee bit more. Select the kit with an "A" on the end if you want a no load tone pot for the neck and middle pickups (or a master no load for kits 10 & 11).

Cover color choice is presented at checkout.


Z-Core 5 Vintage Hot Set™
from 225.00
Controls Kit:
Quantity:
Add To Cart

Z-Core 5 Vintage Hot Set™

  • Bridge: Z-Core Vintage Hot 5 (ZVH5)
  • Middle: Z-Core Vintage 5 (ZVN5)
  • Neck: Z-Core Vintage 5 (ZVN5)

The Z-Core 5 Vintage Hot Set is a step up in output from the Vintage Set. The neck and middle pickups are targeted at a vintage output, but more like those early/mid 60’s versions that were wound a little hotter. The bridge is pushing a more modern “boutique” output, with a few more winds over the original vintage designs to round out the attack and deliver more punch. It is compatible with conventional 250 kΩ controls. We recommend control kit 6 with this set(or 10 if you want to add a blend pot). Use kit 9 (or 11) for a 275 kΩ load if you want to open up the high end just a wee bit more. Select the kit with an "A" on the end if you want a no load tone pot for the neck and middle pickups (or a master no load for kits 10 & 11).

Cover color choice is presented at checkout.


Z-Core 5 Modern/Vintage Set™
from 225.00
Controls Kit:
Quantity:
Add To Cart

Z-Core 5 Modern/Vintage Set™

  • Bridge: Z-Core Modern 5 (ZMD5)
  • Middle: Z-Core Vintage 5 (ZVN5)
  • Neck: Z-Core Vintage 5 (ZVN5)

The Z-Core 5 Modern/Vintage Set is an example of a configuration where the bridge output is “two notches up” from the neck and middle. In most of the modern re-imaginings of vintage pickup configurations, including the standard sets we list above, the bridge is what we could consider “one notch up” (whereas most of the original pickup sets were all wound to the same output level). This is an output level that we find particularly useful, in fact bridging the gap between Vintage and Modern output. We could go crazy listing all of these out, but you can see the pattern behind it. If you’d like to imagine this kind of configuration in a different output level, let us know, that’s well within our Custom Shop capabilities. This set can work with either 250, 275 or 500 k controls. Use 275 (kits 9 & 11) if you want to open up the high end just a bit (we think that's the best option for this intermediate output set). Use 500 (kits 1 & 2) if you want to open up the high end a lot. Select the kit with an "A" for a no load tone pot wired to neck and middle (or a no load master tone for the kits with a blend).

Cover color choice is presented at checkout.


Z-Core 5 Vintage Staggered Set™

  • Bridge: Z-Core Vintage Hot 5 (ZVH5)
  • Middle: Z-Core Vintage 5 (ZVN5)
  • Neck: Z-Core Vintage Underwound 5 (ZVU5)
Z-Core 5 Vintage Staggered Set™
from 225.00
Controls Kit:
Quantity:
Add To Cart

Another way to set it up is to set the neck output, then have the middle one notch up and the bridge one notch up from that. This is an approach that some find to be more balanced. As above, this is an obvious way to group our Vintage Output models, but there are two more output levels available in this configuration from the Custom Shop. It is compatible with conventional 250 kΩ controls. We recommend control kit 6 with this set (or 10 if you want to add a blend pot). Use kit 9 (or 11) for a 275 kΩ load if you want to open up the high end just a wee bit more. Select the kit with an "A" on the end if you want a no load tone pot for the neck and middle pickups (or a master no load for kits 10 & 11).

Cover color choice is presented at checkout.


Z-Core 5 Modern Set™
from 225.00
Controls Kit:
Quantity:
Add To Cart

Z-Core 5 Modern Set™

  • Bridge: Z-Core Modern 5 (ZMD5)
  • Middle: Z-Core Vintage Hot 5 (ZVH5)
  • Neck: Z-Core Vintage Hot 5 (ZVH5)

The Z-Core 5 Modern Set is a step up in output from the Vintage Hot. The neck and middle pickups are targeted at an output just slightly hotter than true “vintage” output, but because of our unique design they still retain the vintage response. The bridge is a modern high output “boutique” flavor of Strat, with a powerful but still very Stratty attack like our Legacy Series SV5. This set can work with either 250, 275 or 500 k controls. Use 275 (kits 9 & 11) if you want to open up the high end just a bit (we think that's the best option for this intermediate output set). Use 500 (kits 1 & 2) if you want to open up the high end a lot. Select the kit with an "A" for a no load tone pot wired to neck and middle (or a no load master tone for the kits with a blend).

Cover color choice is presented at checkout.


Z-Core 5 Overwound Set™

Z-Core 5 Overwound Set™
from 225.00
Controls Kit:
Quantity:
Add To Cart
  • Bridge: Z-Core Overwound 5 (ZOW5)
  • Middle: Z-Core Modern 5 (ZMD5)
  • Neck: Z-Core Modern 5 (ZMD5)

The Z-Core 5 Overwound Set is a step up in output from the Vintage Hot. The neck and middle pickups are targeted at an output just slightly hotter than and true “vintage” output, but because of our unique design still retain the vintage response. The bridge is a modern high output “boutique” flavor of Strat, with a powerful, round but still very Stratty attack like our Legacy Series SV5. This set works best with 500 k controls. Select kit 1 or kit 2 (if you want a blend option). Kits ending in "A" substitute a no load tone pot for the neck and middle (a no load master tone with the blend option).

Cover color choice is presented at checkout.
