In This Set

• Bridge: Z-Core Vintage Hot 5™ (ZVH5)

• Middle: Z-Core Vintage 5™ (ZVN5)

• Neck: Z-Core Underwound 5™ (ZVU5)

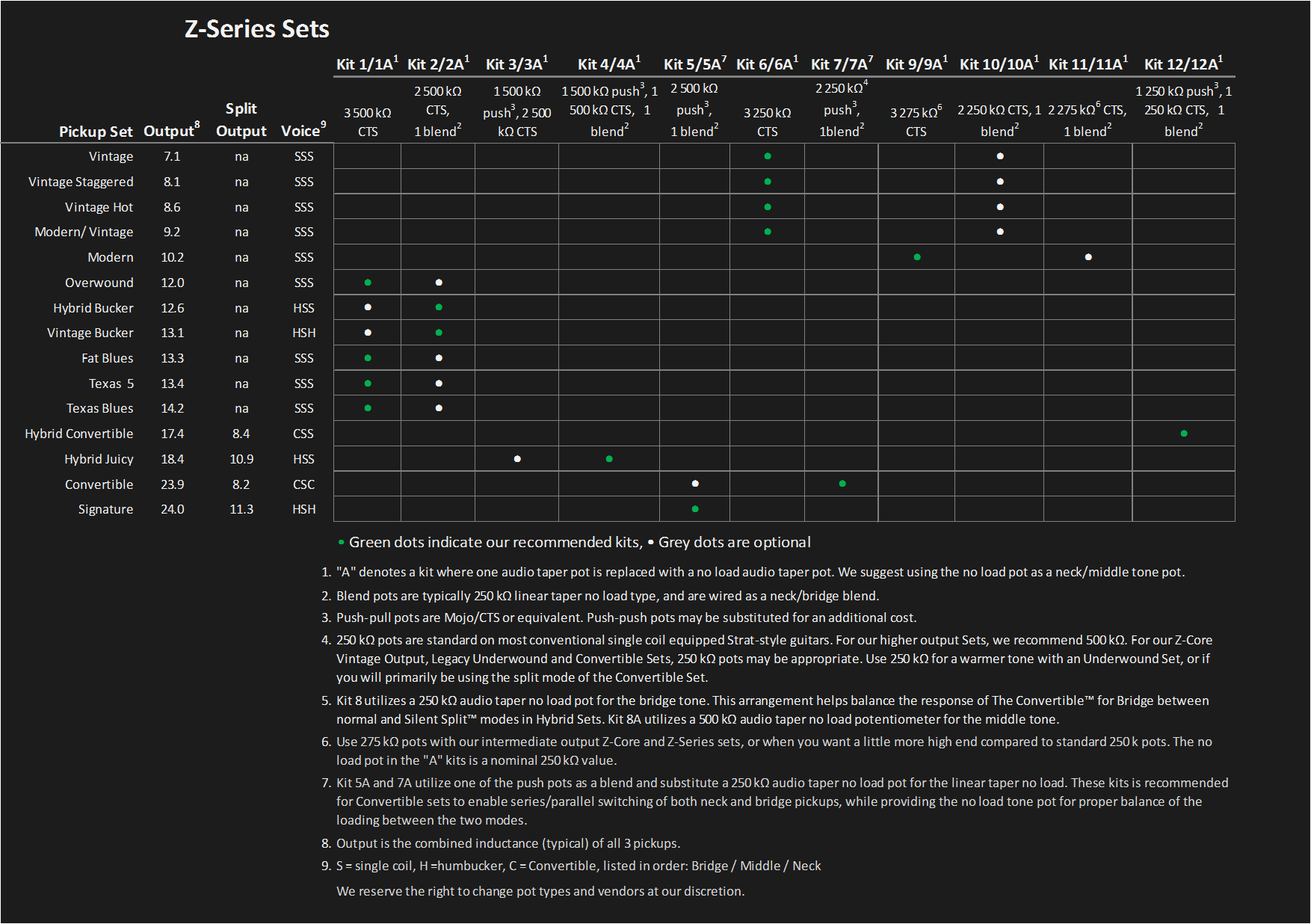

Recommended Controls Kits

• Kit #6: (3) CTS 250k audio taper pots

• Kit #6A: (2) CTS 250k audio taper pots, (1) 250k no load tone pot

• Kit #10: (2) CTS 250k audio taper pot, (1) Bourns 250k no load blend pot

• Kit #10A: (1) CTS 250k audio taper pot, (1) CTS 250k no load audio taper pot, (1) Bourns 250k no load blend pot

Description

Another way to set it up is to set the neck output, then have the middle one notch up and the bridge one notch up from that. This is an approach that some find to be more balanced. As above, this is an obvious way to group our Vintage Output models, but there are two more output levels available in this configuration from the Custom Shop.

Assembly Information

• “Assembled Sets” are fully wired with pickups, controls, 5-way switch and capacitor and mounted on a cardboard template.

• For a Loaded Pickguard with this set (fully wired with pickups, controls, 5-way switch and capacitor along with pickguard, knobs and switch tip of your choice), order here.

Controls Kit Assembly Information

• Assembled sets are fully wired with controls, 5-way switch and capacitor mounted on a cardboard template.

• Kits don’t include pickguards, knobs or a switch tip. For a Loaded Pickguard click here.

• Sets are wired with Strat spacing. Please let us know if you have anything non-standard.

Please note:

• Pickups may take 10-15 days before ready for shipment.

  1. Lefties are considered special orders and may take up to 3 weeks before ready for shipment.

  2. Left-handed "Z-Core" pickups are only available from the Custom Shop. If you want this feature for a set, here is an option to add to your order. For the Z-Core 5 Vintage Staggered Set you’ll need to select ‘Left for 3 pickups’.

  3. We have limited availability of left handed parts. Please contact us for left-handed loaded pickguards and assembled sets.

  4. Z-Series pickups have their covers potted on. Removal will void the warranty.

  5. Cover color choice is presented at checkout.

  6. All of our pickups are made to order and with fixed cover (pickups potted in their covers) Z-Series/Z-Core models, orders placed will be built with covers selected at checkout and color changes will be subject to a $10 restock fee, $25.00 for a set of three.

  7. USPS First Class International Postage is not available for orders over $400 USD. Only USPS Priority International or Priority Express International are available over $400 USD.
