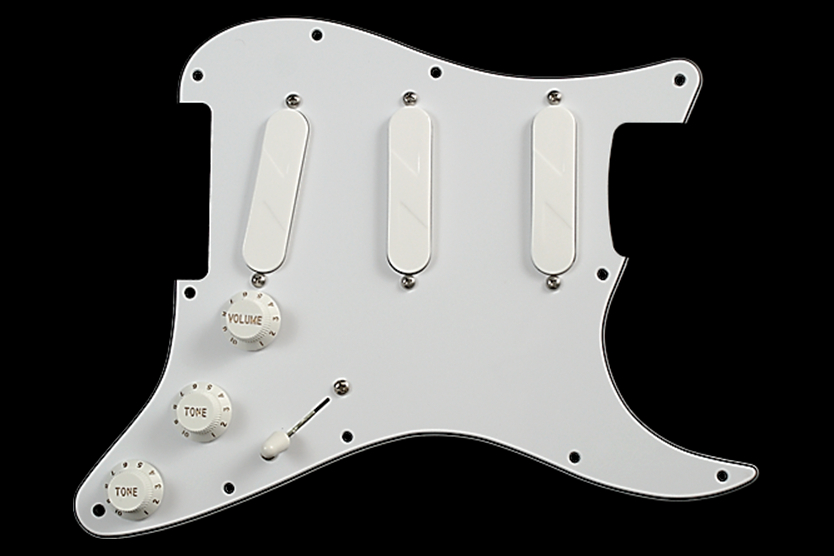

Z-Core 5 Vintage Hot Set™ - Loaded Pickguard

180506 Z Loaded Guard.png
180506 Z Loaded Guard.png

Z-Core 5 Vintage Hot Set™ - Loaded Pickguard

$395.00
Quantity:
Add To Cart

In This Set

  • Bridge: Z-Core Vintage Hot 5™ (ZVH5)

  • Middle: Z-Core Vintage 5™ (ZVN5)

  • Neck: Z-Core Vintage 5™ (ZVN5)

This is a demo of a range of classic tones with the Z-Core 5 Vintage Hot Set. Bridge: Z-Core 5 Vintage Hot Neck & Middle: Z-Core 5 Vintage All clips recorded on a Fender Princeton Reverb II set up clean. Pickup switch positions and effects used as indicated.
This is the Z-Core 5 Vintage Hot Set. Bridge: Z-Core 5 Vintage Hot Neck & Middle: Z-Core 5 Vintage Recorded on a vintage blackface Fender VibroChamp with the volume at 5. The microphones used were an AKG Perception and Sennheiser e906. Some subtle compression and reverb were added to the mix, but no equalization was used on the guitars.
This is the Z-Core 5 Vintage Hot Set. Bridge: Z-Core 5 Vintage Hot Neck & Middle: Z-Core 5 Vintage Rhythm guitars on left channel are position 2 (bridge/middle), right channel position 4 (neck/middle). Recorded on a vintage blackface Fender VibroChamp with the volume at 5. The microphones used were an AKG Perception and Sennheiser e906.

Description

The Z-Core 5 Vintage Hot Set is a step up in output from the Vintage Set. The neck and middle pickups are targeted at a vintage output, but more like those early/mid 60’s versions that were wound a little hotter. The bridge is pushing a more modern “boutique” output, with a few more winds over the original vintage designs to round out the attack and deliver more punch.

This set utilizes 2 standard 250 k audio taper pots, with a dedicated tone knob on the bridge pickup and a 250 k no load audio taper pot wired as the neck and middle tone. Other control and wiring options are available by special order. Pricing may vary.

Check out the Loaded Pickguard Gallery.

Assembly Information

  • Loaded pickguards are fully wired with pickups, controls, 5-way switch and capacitor along with pickguard, knobs and switch tip of your choice.

  • Select colors for covers, pickguards, knobs and switch tip at checkout.

  • If you wish to use your own pickguard, knobs and switch tip and have us pre-wire the pickups and controls only (mounted on a cardboard template), order an "assembled set" here.

  • We use the "modern" 11 hole pickguard pattern. Other hole patterns are available by special order. Pricing may vary.

  • We configure our loaded pickguards with our best wiring and control recommendation. Other control and wiring options are available by special order. Pricing may vary.

Please note:

  • Pickups may take 10-15 days before ready for shipment.

  • Lefties are considered special orders and may take up to 3 weeks before ready for shipment.

  • We have limited availability of left handed parts. Please contact us for left-handed loaded pickguards and assembled sets.

  • Z-Series pickups have their covers potted on. Removal will void the warranty.

  • Cover color choice is presented at checkout.

  • All of our pickups are made to order and with fixed cover (pickups potted in their covers) Z-Series/Z-Core models, orders placed will be built with covers selected at checkout and color changes will be subject to a $10 restock fee, $25.00 for a set of three.

  • USPS First Class International Postage is not available for orders over $400 USD. Only USPS Priority International or Priority Express International are available over $400 USD.
