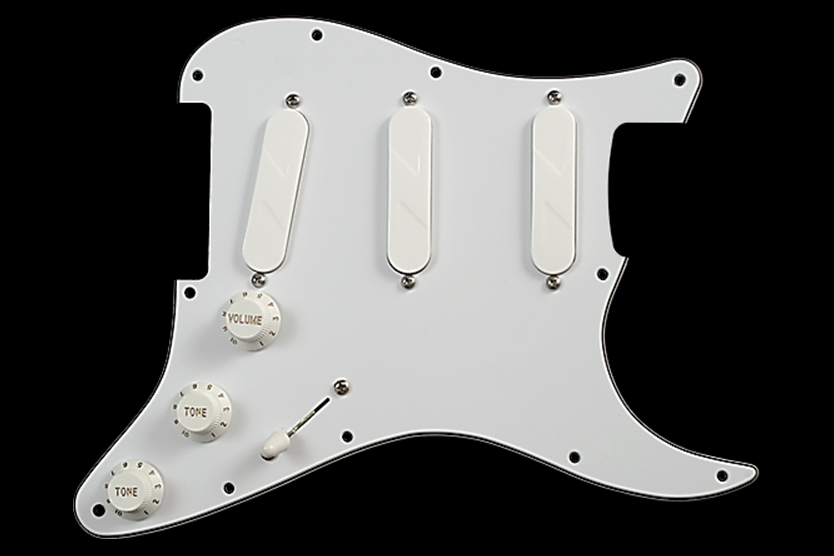

Z-Series Hybrid Convertible Set™ - Loaded Pickguard

180506 Z Loaded Guard.png
180506 Z Loaded Guard.png

Z-Series Hybrid Convertible Set™ - Loaded Pickguard

$440.00
Quantity:
Add To Cart

In This Set

  • Bridge: Z-Series Convertible for Bridge™ (ZCH4)

  • Middle: Z-Core Vintage 5 (ZVN5)

  • Neck: : Z-Core Vintage 5 (ZVN5)

Description

The Hybrid Convertible Set combines the great split tone and powerful, clear normal tone of our Convertible with the slightly hot Z-Core Vintage 5 in the neck and middle. Combined with a push pot to actuate the Silent Split™ and a blender pot for fantastic neck/bridge tones , you have a set with go to single coil and a unique humbucker tone in the bridge.

This set utilizes 1 250 k audio taper push/pull pot as a volume and split switch for the bridge pickup, 1 250k no load audio taper pot as a master tone and 1 250 k linear taper no load pot as a neck/bridge blend. The push/pull pot is wired with split mode down. Other control and wiring options are available by special order. Pricing may vary.

Legacy Series equivalent: Hybrid Convertible Set

Check out the Loaded Pickguard Gallery.

Assembly Information

  • Loaded pickguards are fully wired with pickups, controls, 5-way switch and capacitor along with pickguard, knobs and switch tip of your choice.

  • Select colors for covers, pickguards, knobs and switch tip at checkout.

  • If you wish to use your own pickguard, knobs and switch tip and have us pre-wire the pickups and controls only (mounted on a cardboard template), order an "assembled set" here.

  • We use the "modern" 11 hole pickguard pattern. Other hole patterns are available by special order. Pricing may vary.

  • We configure our loaded pickguards with our best wiring and control recommendation. Other control and wiring options are available by special order. Pricing may vary.

  • For Assembled and Loaded Pickguard Convertible sets (wired to controls), the default is to wire the switch(es) so that the split is on when the push/pull is down, series mode up. If you wish to have it wired split up, please let us know by email.

  • The default for push/pull pots is the CTS push/pull. If you'd prefer to substitute push/push, let us know by email.


Please note:

  • Pickups may take 10-15 days before ready for shipment.

  • Lefties are considered special orders and may take up to 3 weeks before ready for shipment.

  • We have limited availability of left handed parts. Please contact us for left-handed loaded pickguards and assembled sets.

  • Z-Series pickups have their covers potted on. Removal will void the warranty.

  • Cover color choice is presented at checkout.

  • All of our pickups are made to order and with fixed cover (pickups potted in their covers) Z-Series/Z-Core models, orders placed will be built with covers selected at checkout and color changes will be subject to a $10 restock fee, $25.00 for a set of three.

  • USPS First Class International Postage is not available for orders over $400 USD. Only USPS Priority International or Priority Express International are available over $400 USD.
